| Landy steering box replacement...... |
Landy Rear cross member exchange 05 |
|

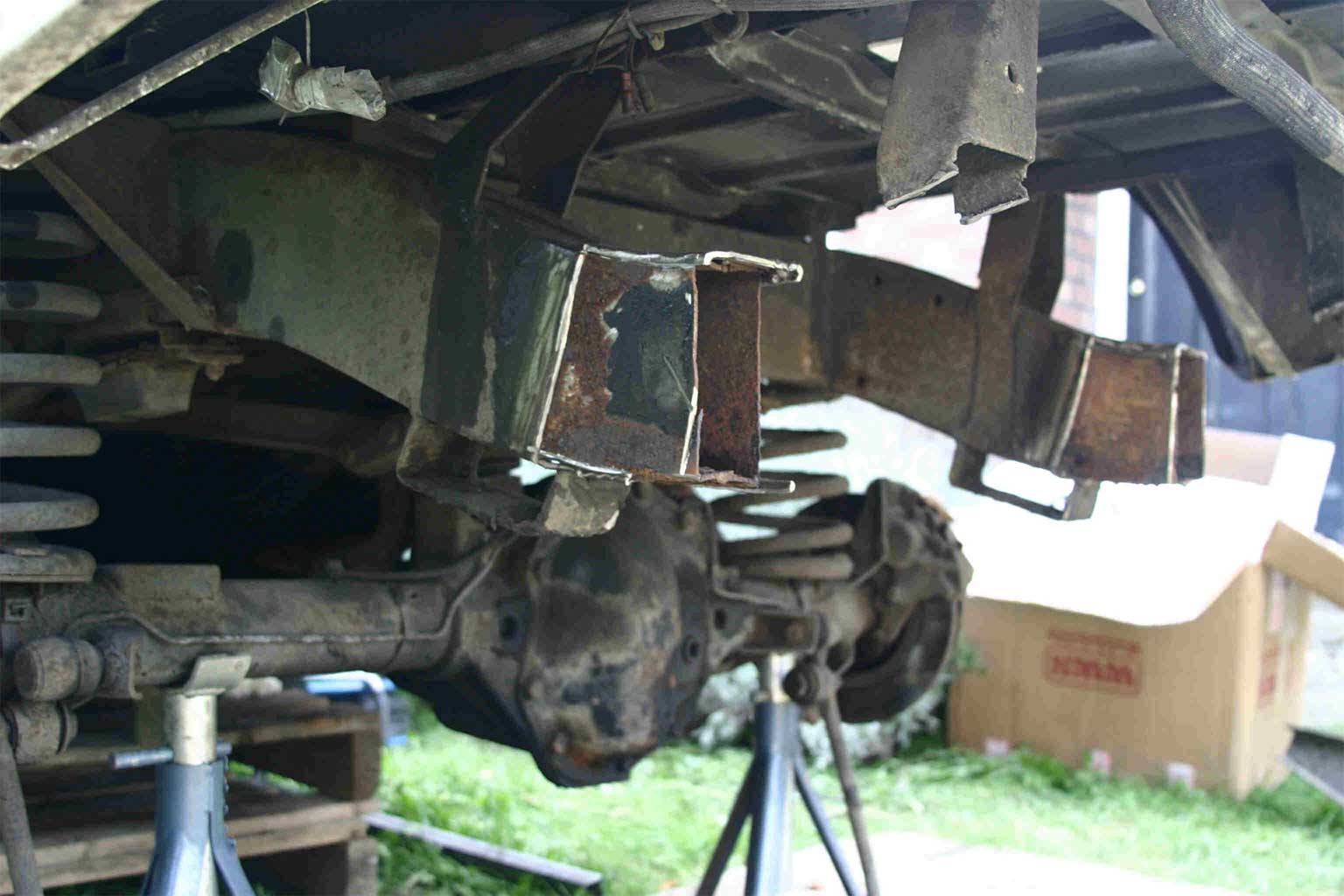

after lots of cutting and grinding
|
 strange

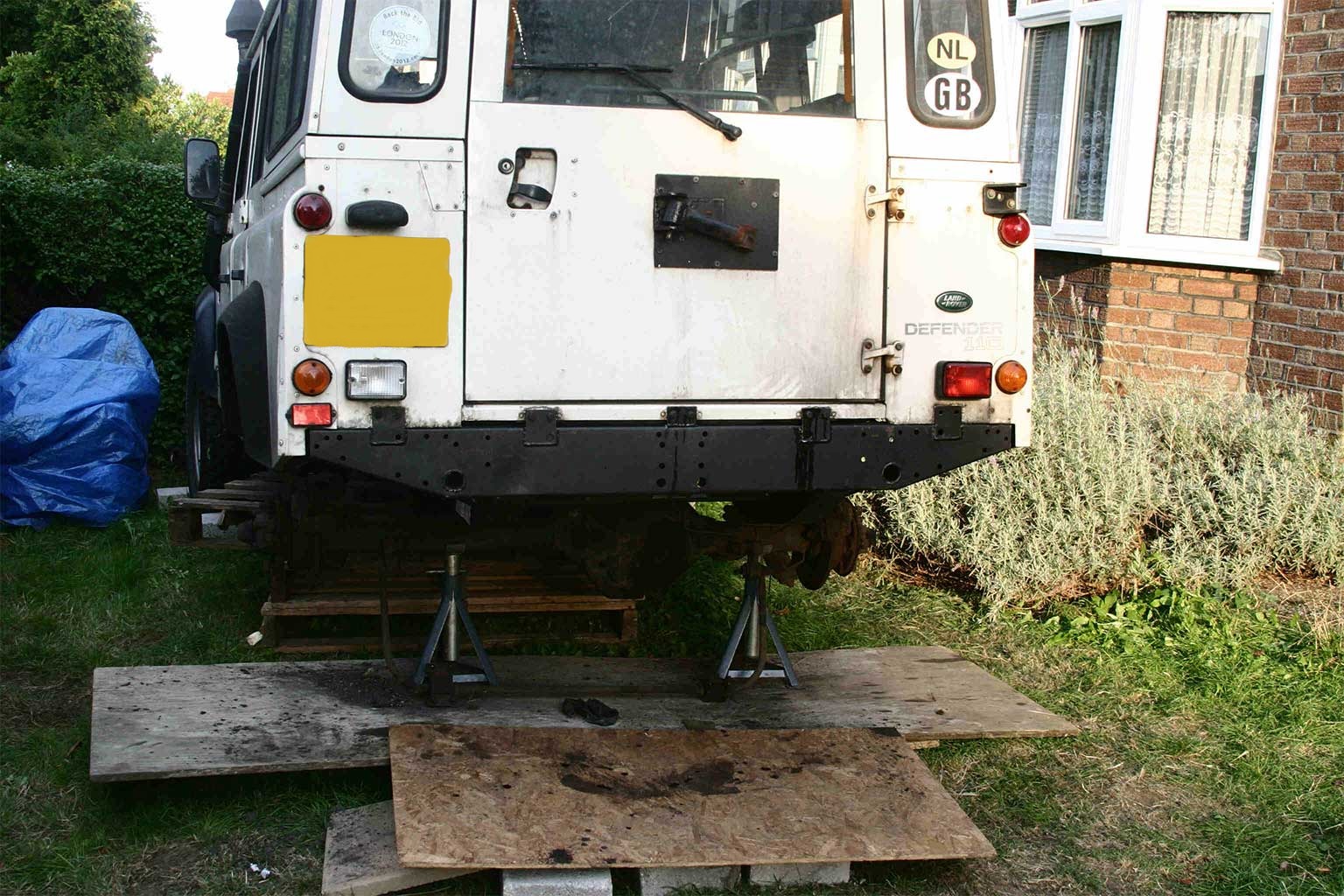

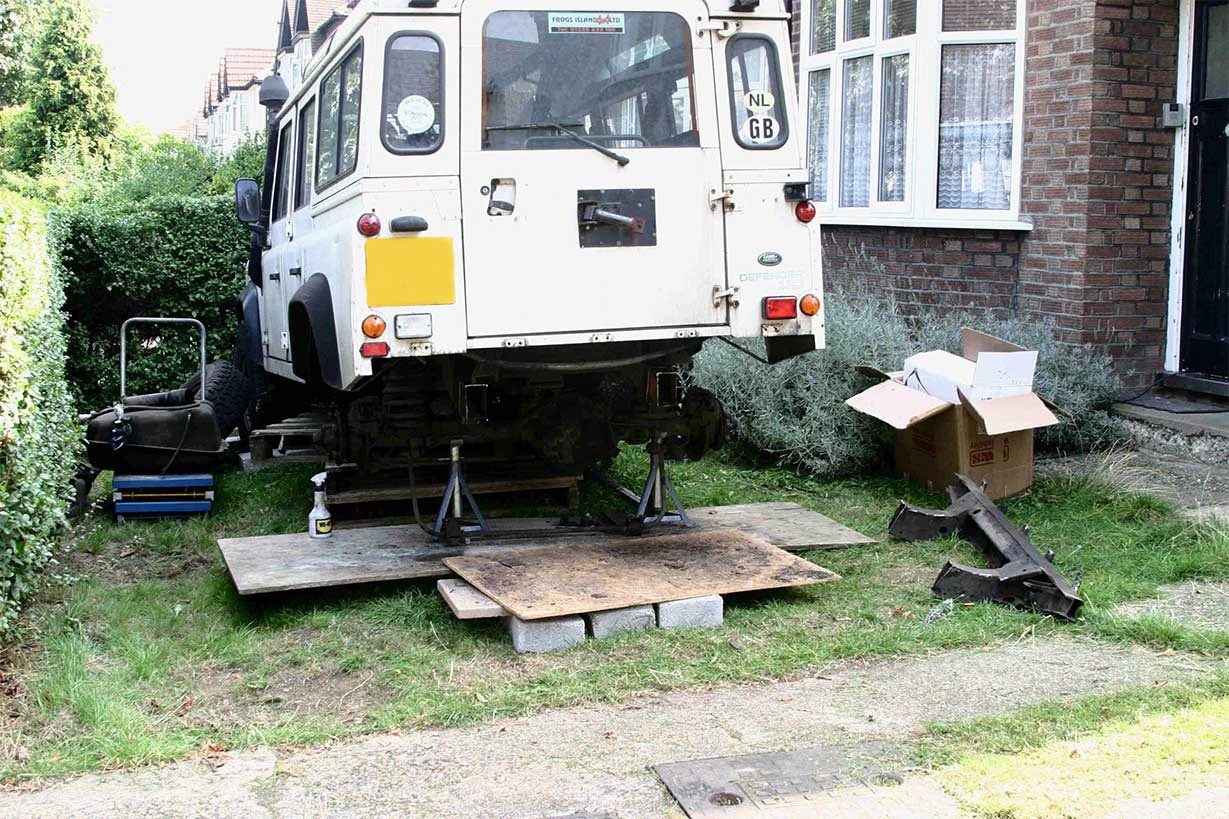

look, without the rear cross member |

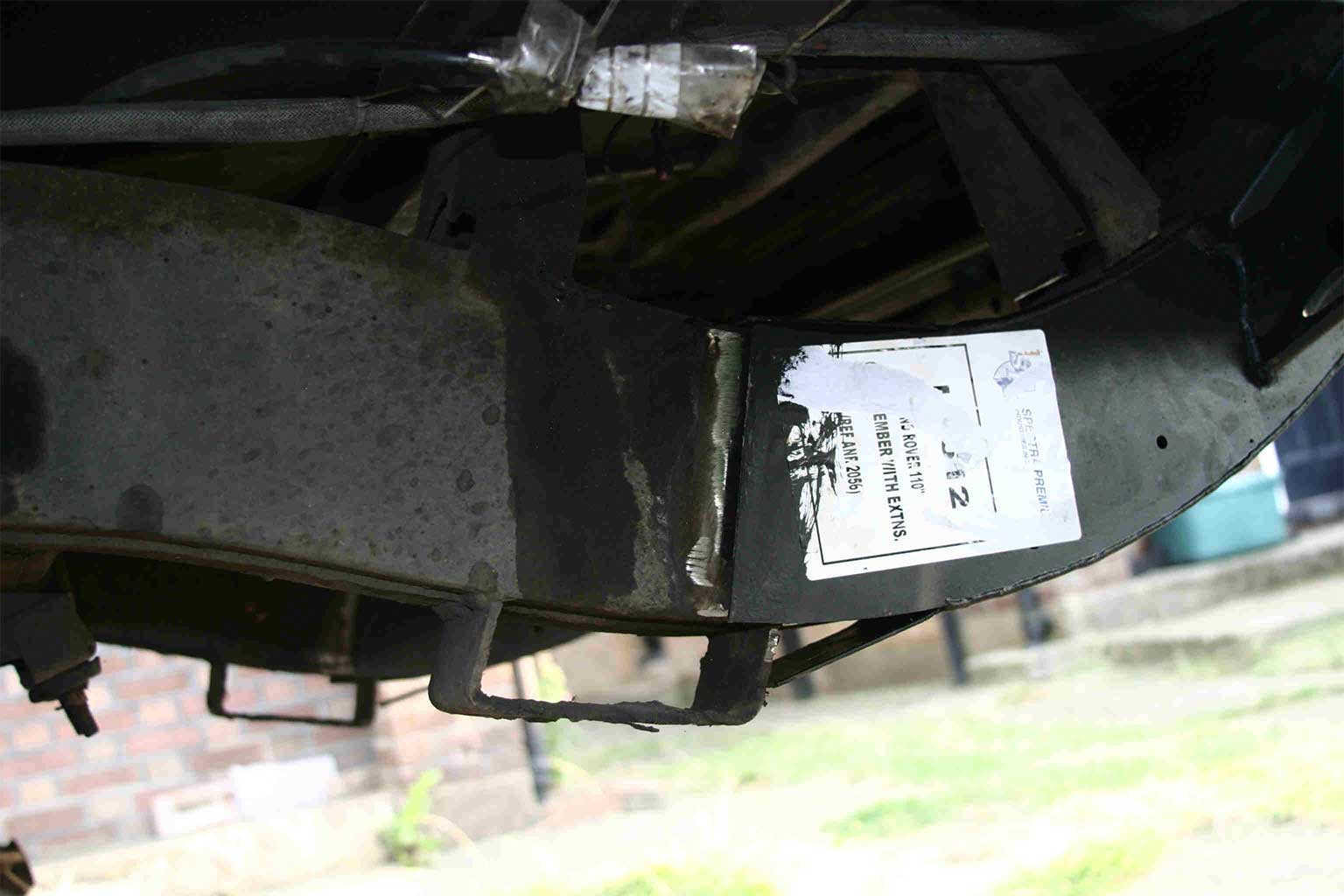

Replacement fitted, jets before welding. |
all welding done, next tank... which took a few tries, |
Landy bulkhead exchange pictures 04 |
 The
beginning,

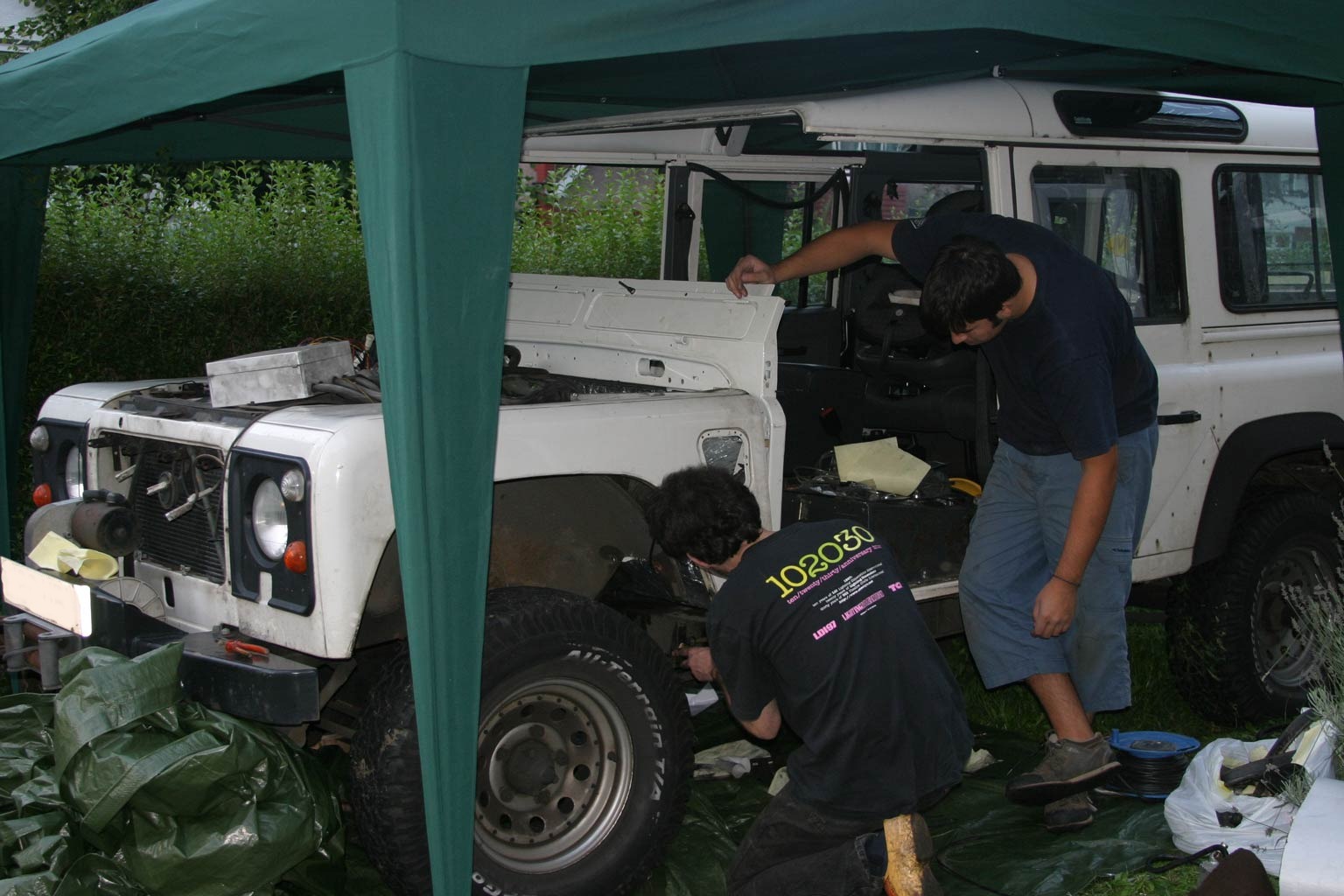

lots of parts to take off, all bagged and marked up |
 Just

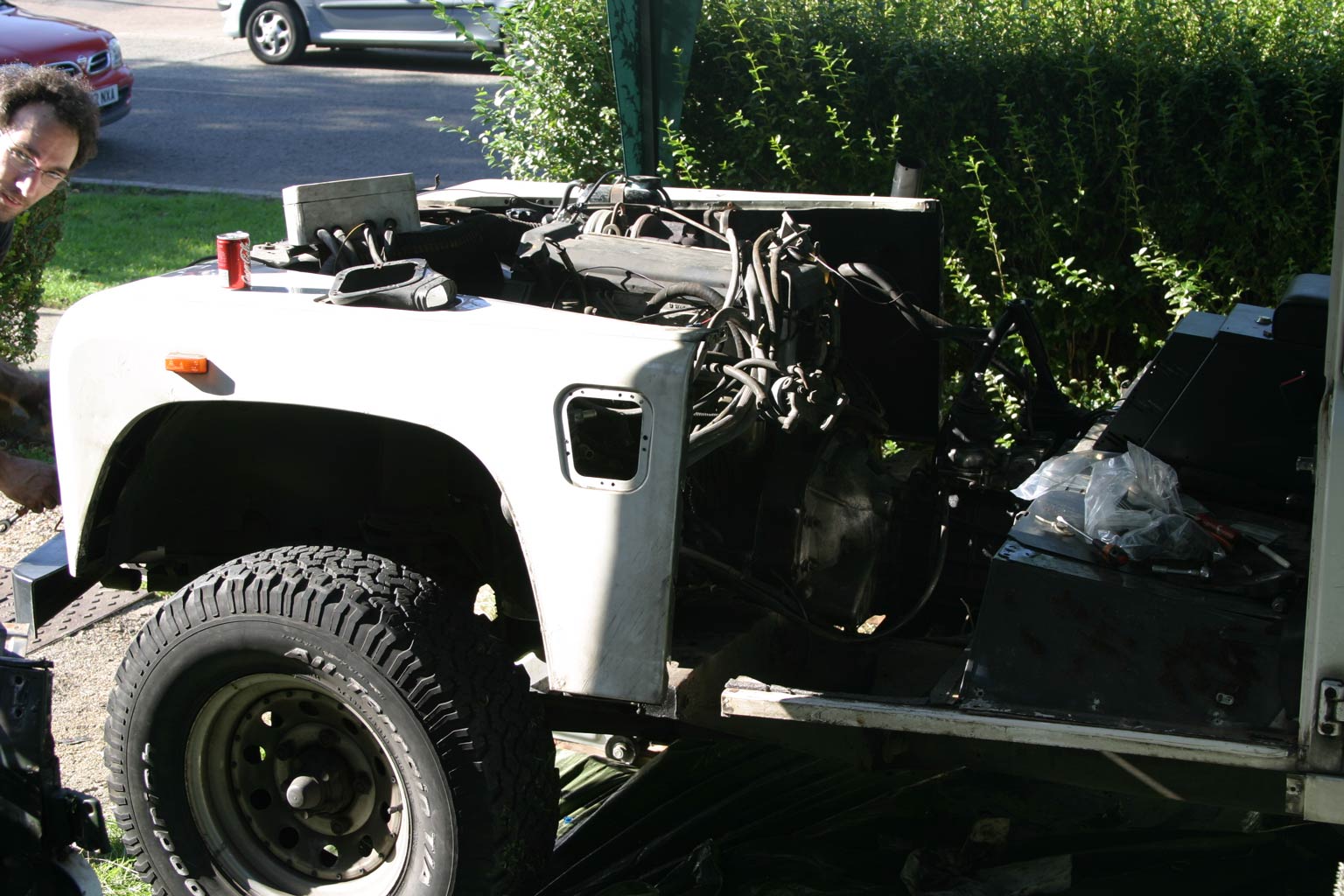

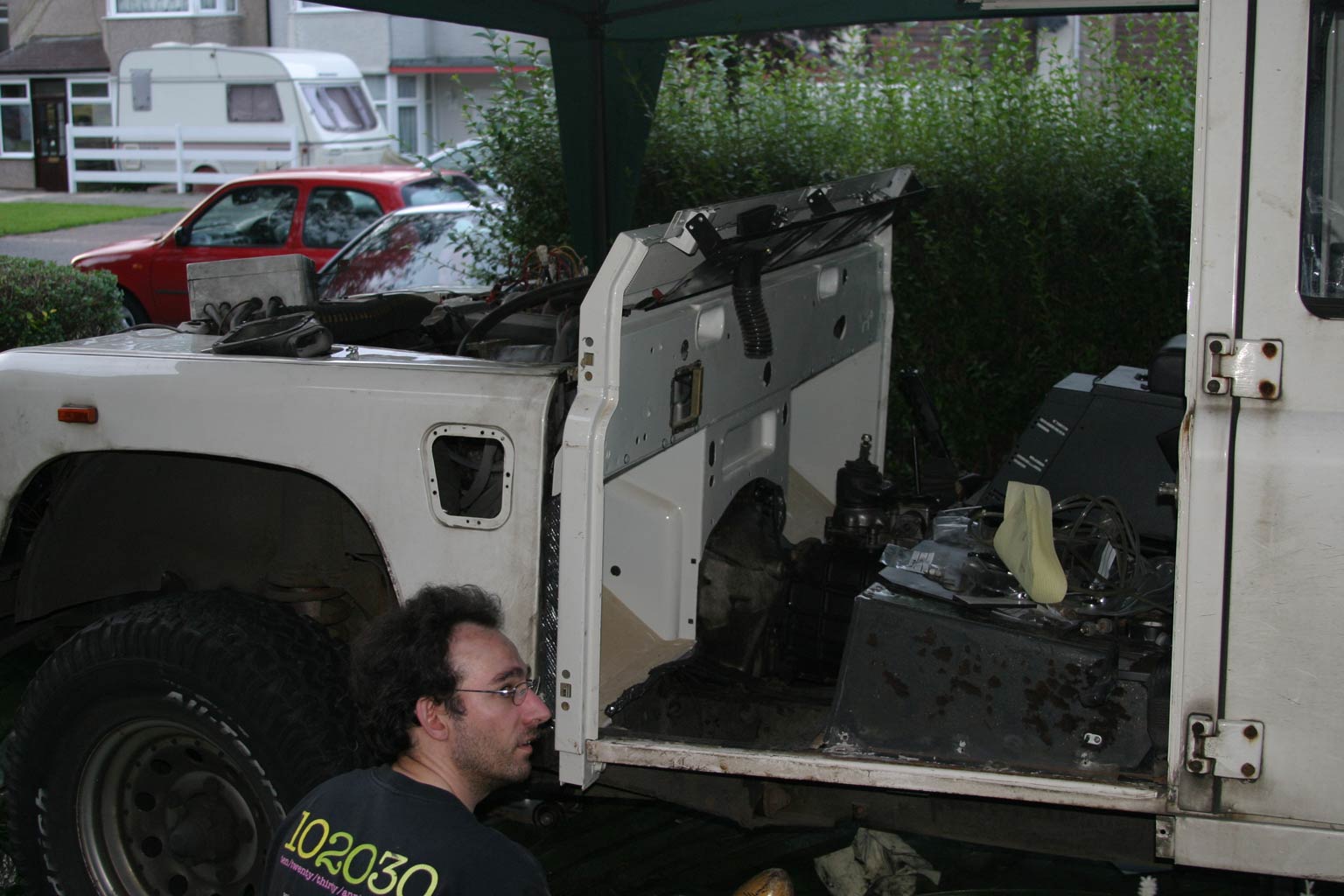

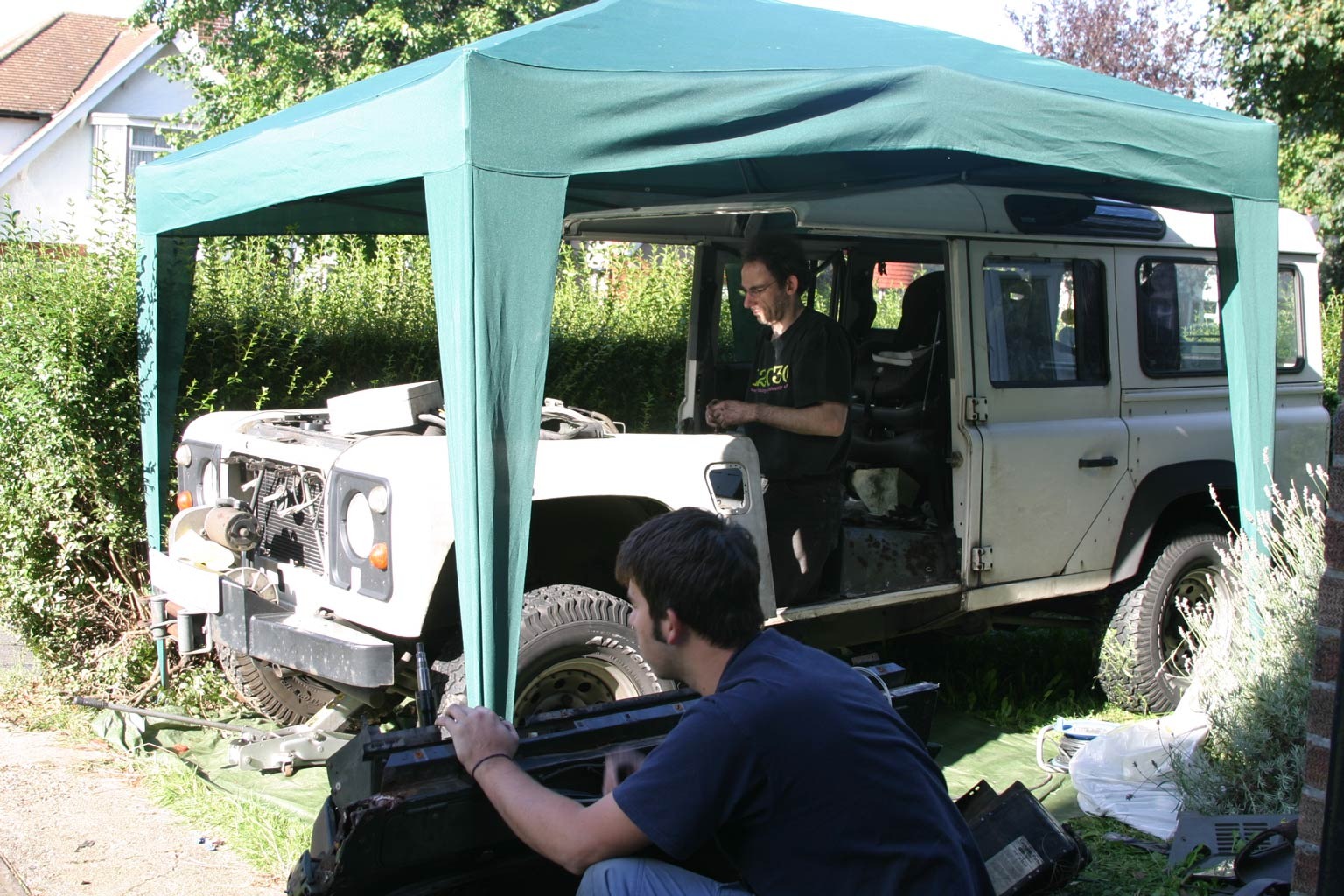

after the old bulkhead came out, Dan is still holding it..... |
|
|
 new
bulkhead placed, and starting to bold it in |
 Day

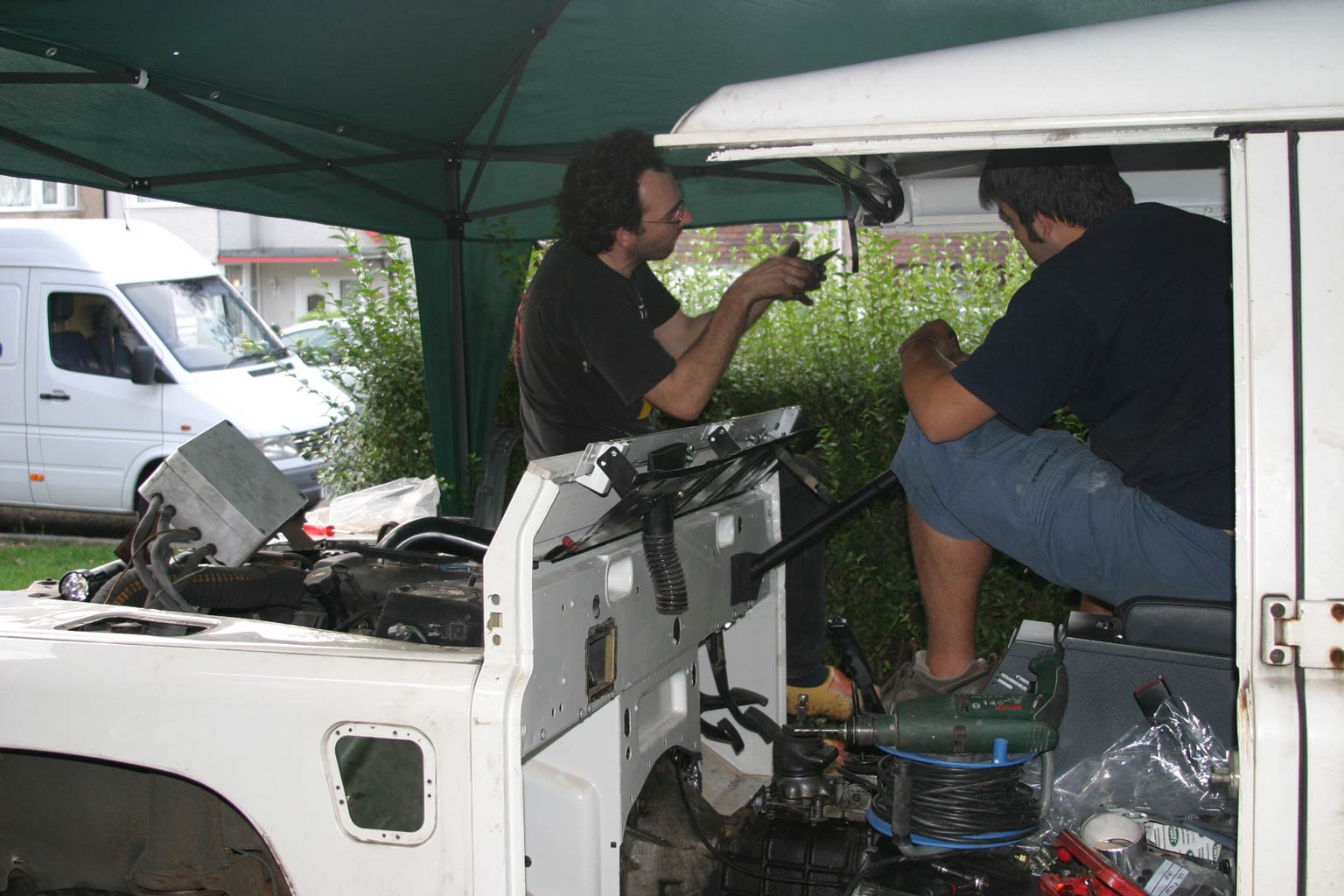

Two, having fun fixing the air-intake. It seems that the inner part
is to be fitted to the wing prior to fixing the wing.... but with
BFI it can be done after
|
 Day

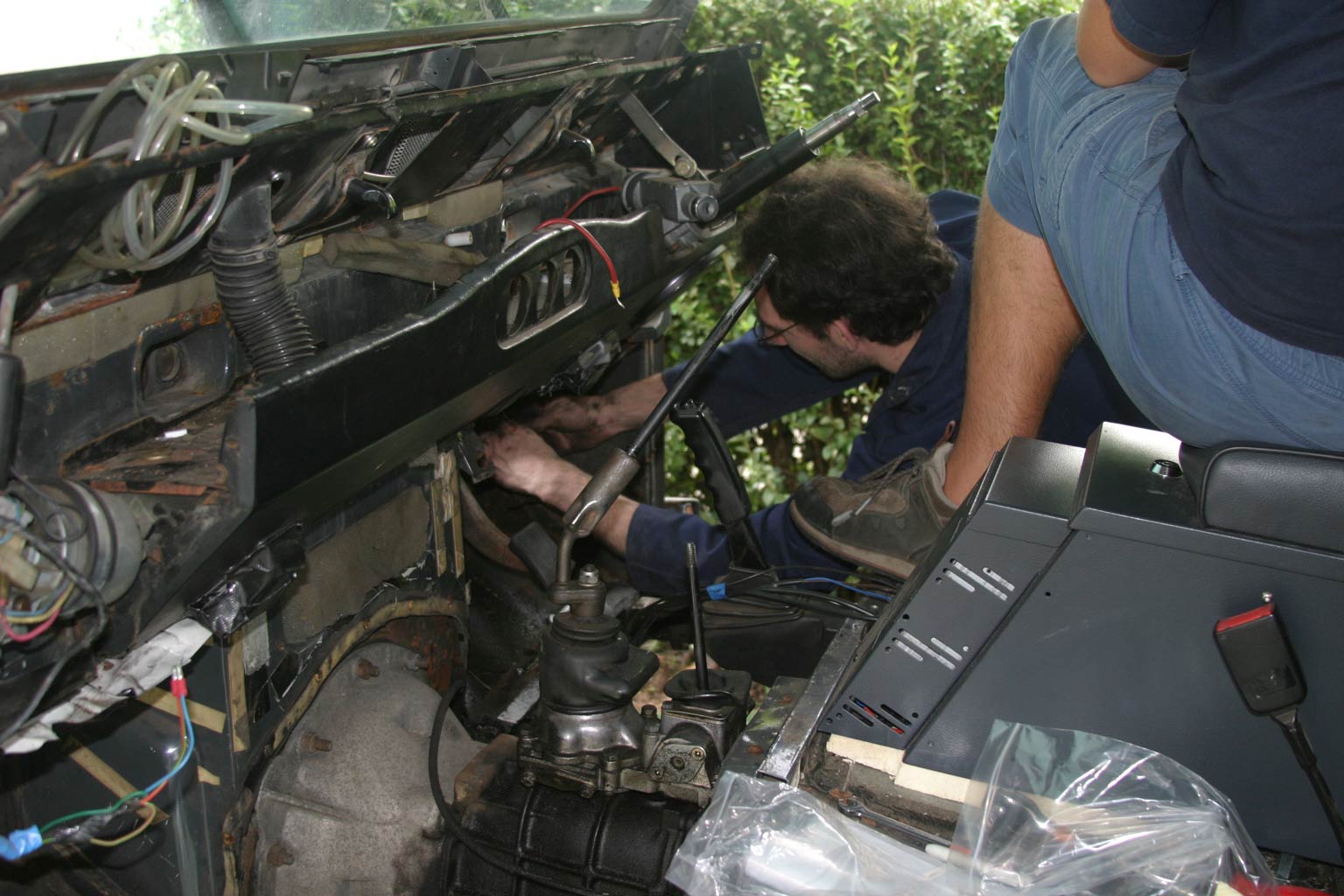

Two, bulkhead and wings are fitted and secure, brake, clutch and accelerator
pedals are fitted, steering column fitted and we are just having fun
repairing the roof fixings.
we ended up having to open the small channel, remove the captive spring nut, and fit a plate with a rivet nut fitted (custom made)
|
 The
Next weekend, window in, floor fitted (new panels) and started on
the dash assembly

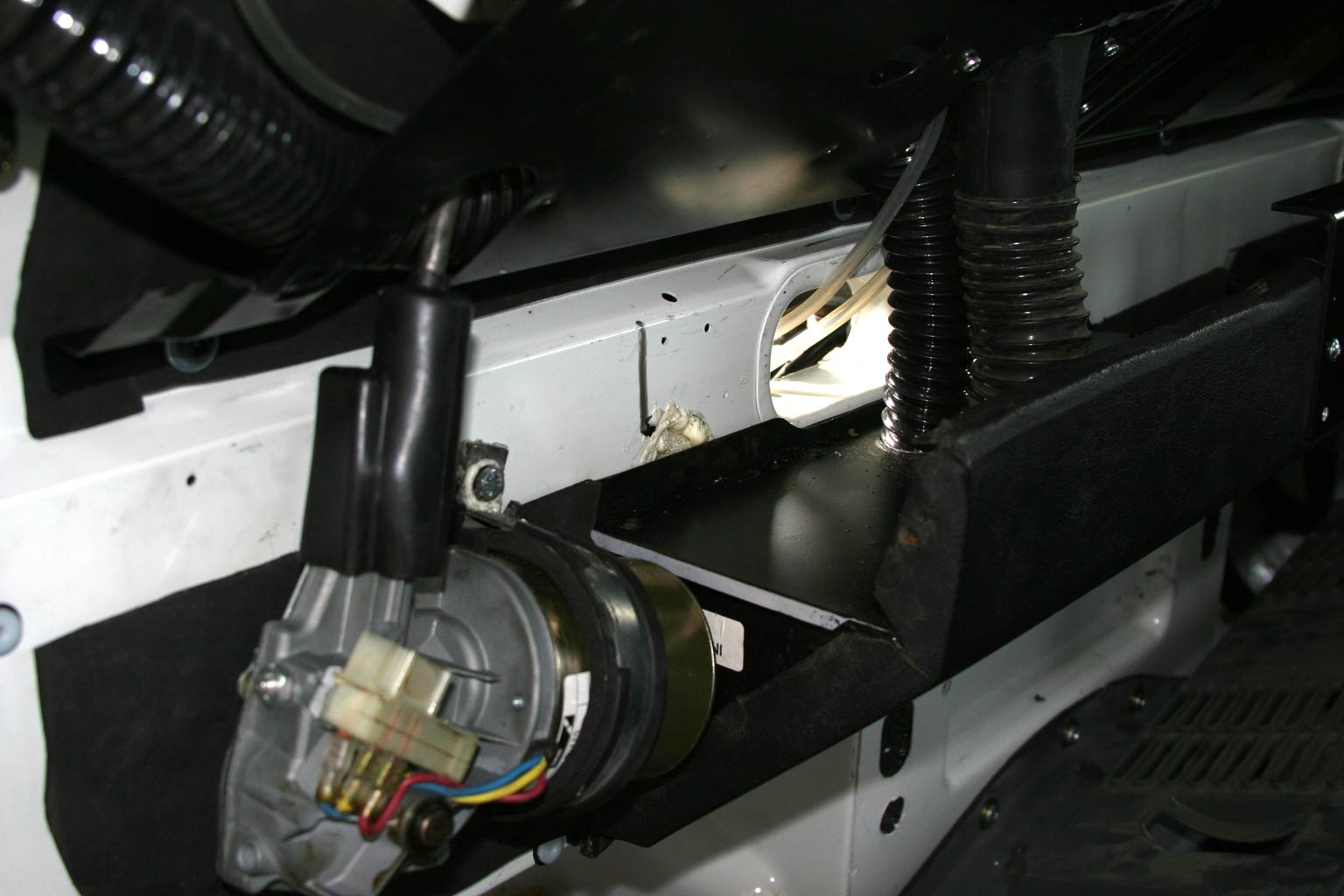

first up was wiper and washer jet, vent flaps which are bolted shut using two custom made C clamps and extra fixings on the flap. then an insulation layer of neoprene rubber and then the dash parts, slow progress Note the tube.....????? |
 That
tube again (behind the heater tube)
This is all part of an ploy to The tube is connected to the heater duct and routes to the side of the dash....
|
 The

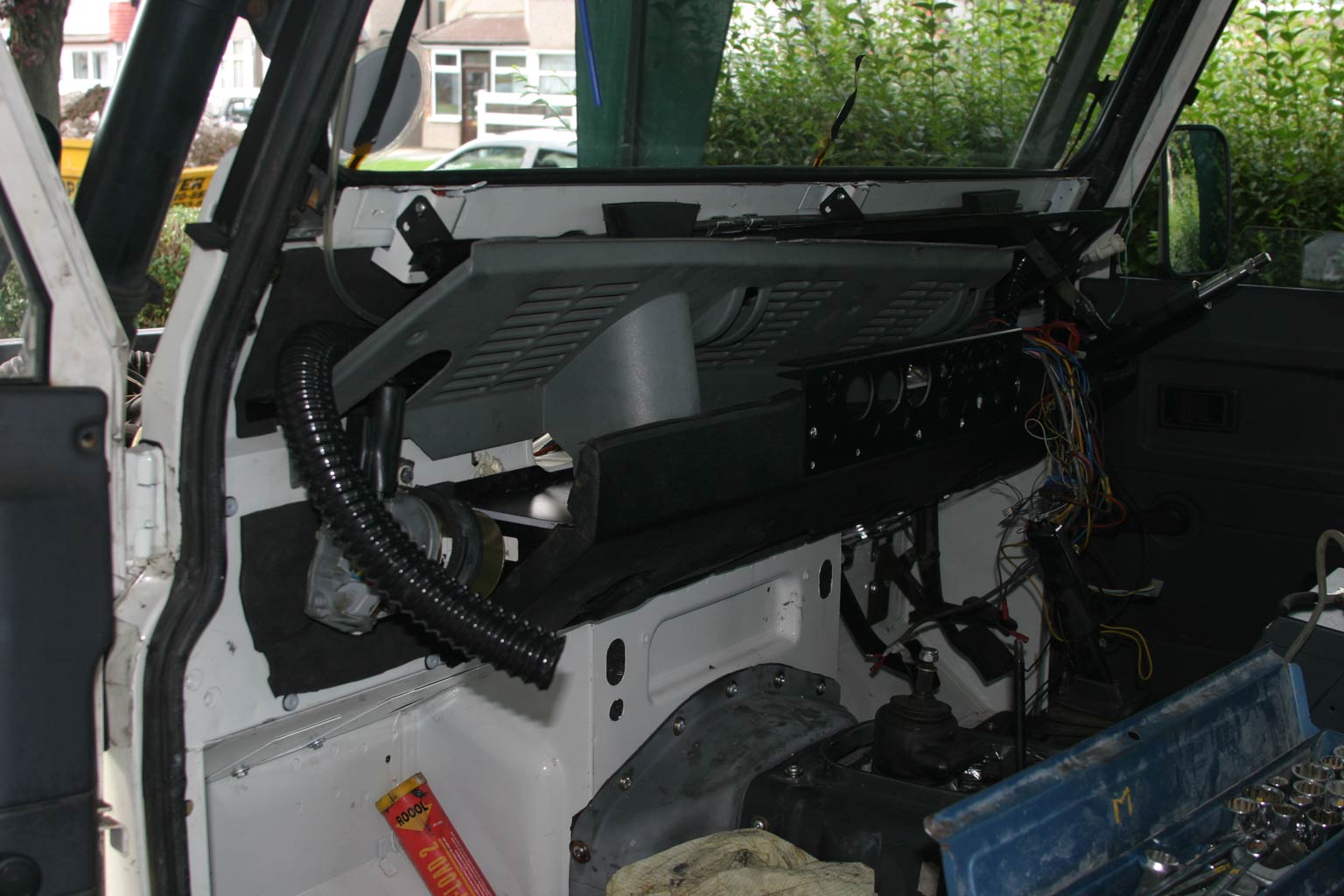

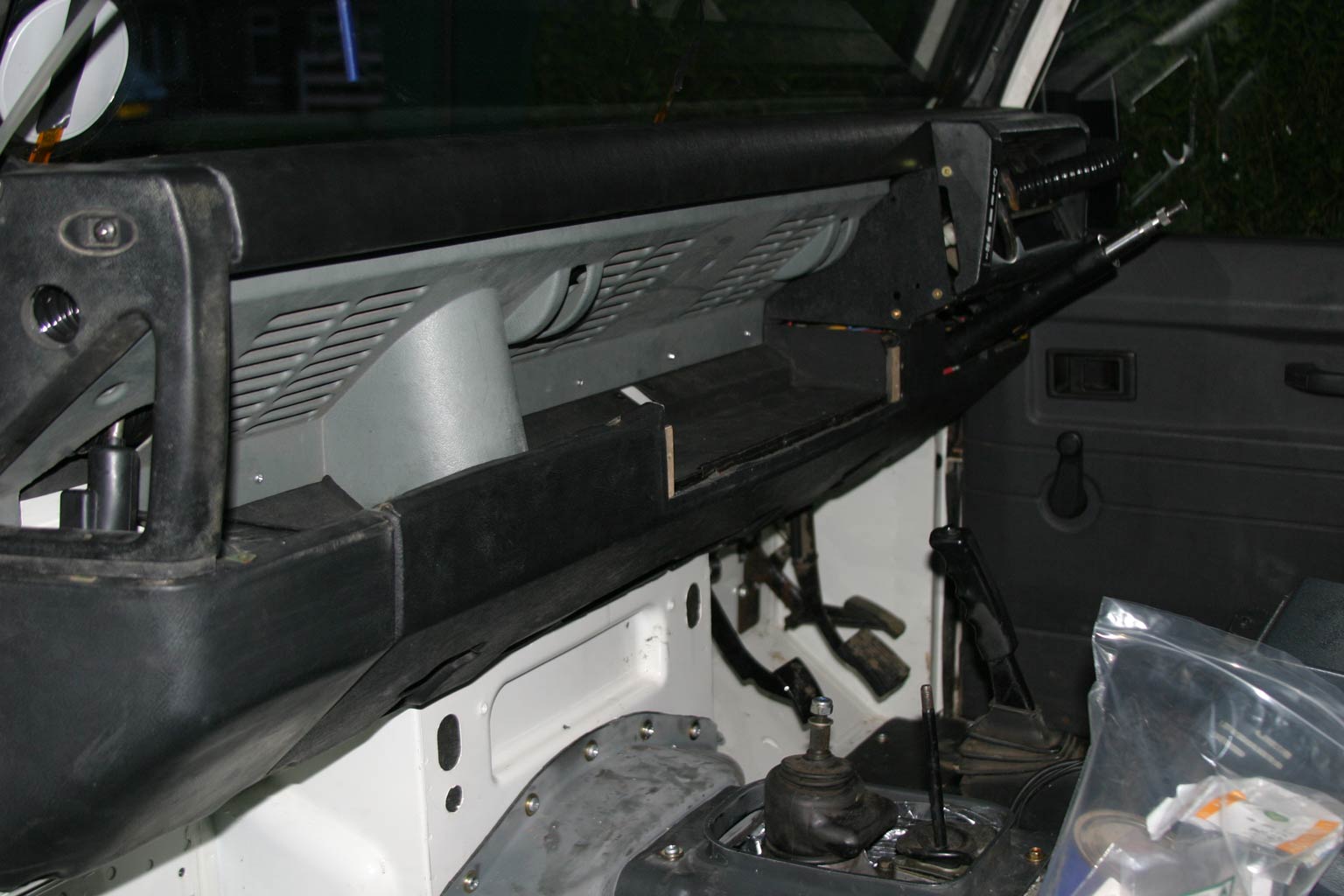

dash in a nearly ready state. The top dash is custom made with wider
windscreen vents and no ash tray.
you can see The door window vent exiting in the grab handle (small hole under the cavity for the Land Rover Oval). eventually a grill will cover the hole.. now only the wiring and switches |
 Day

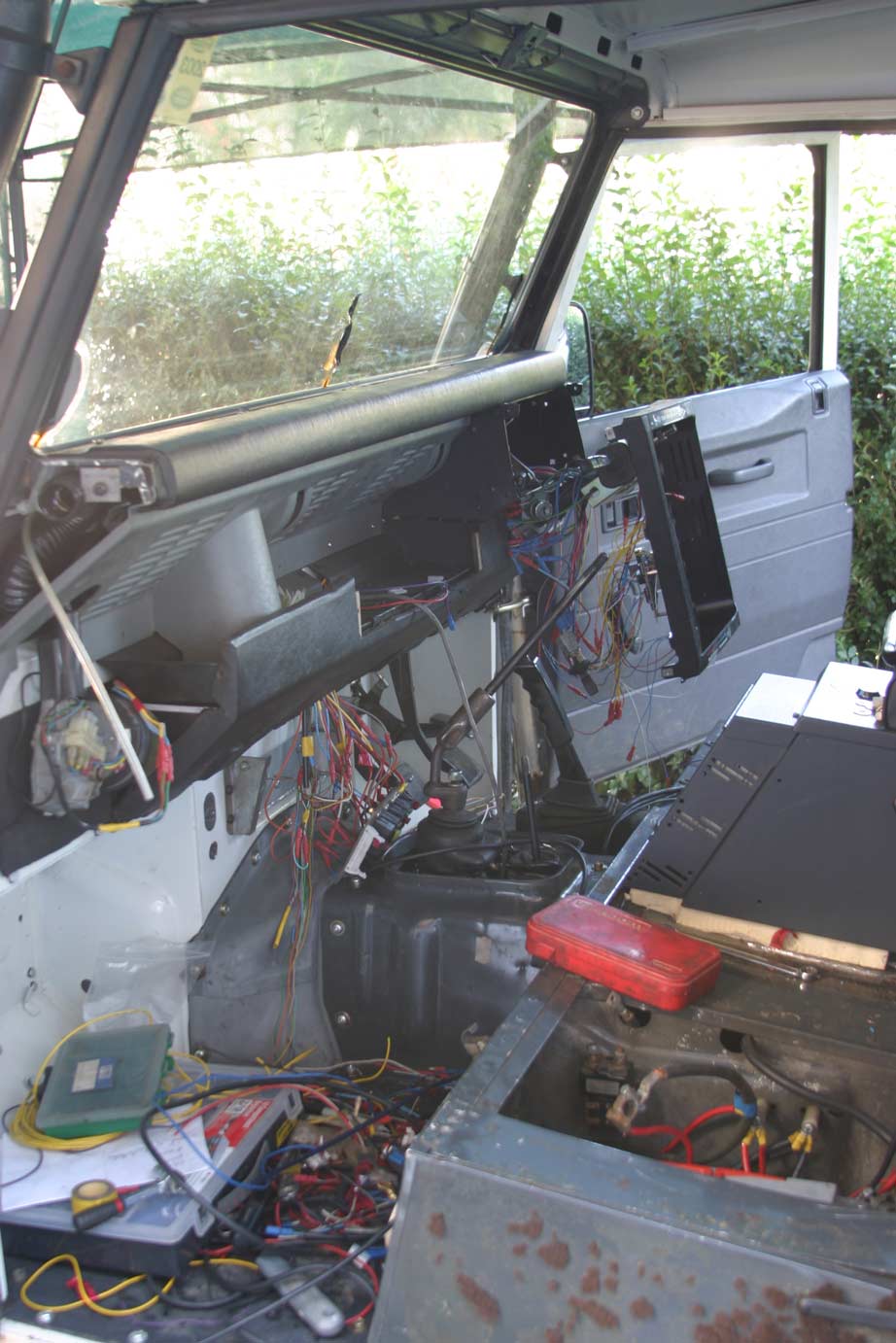

X, started the electrics finally.
The "old" relay board now lives in the "old" fuse location. mechanical jobs done except for bleeding the brakes and clutch
|
 Another

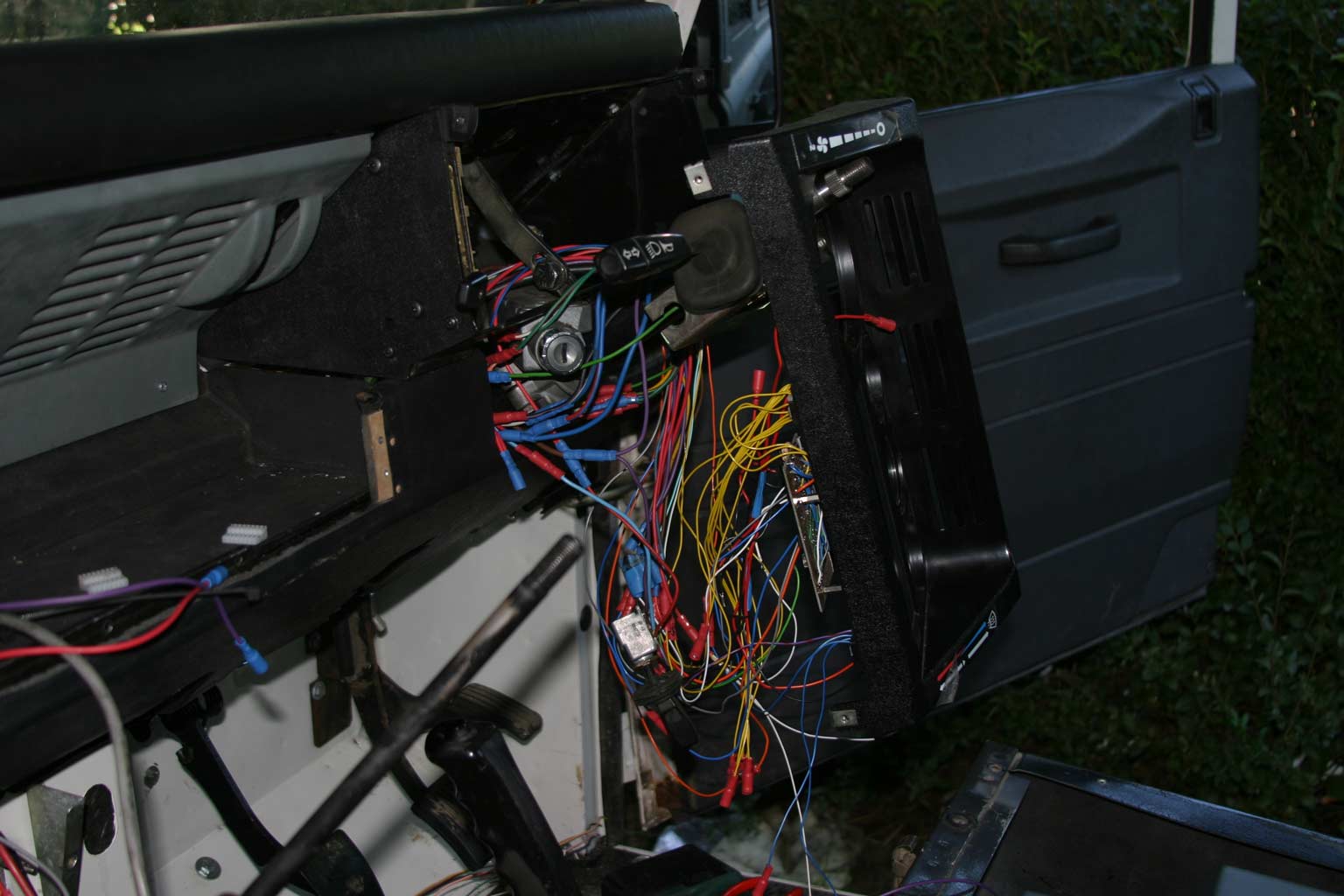

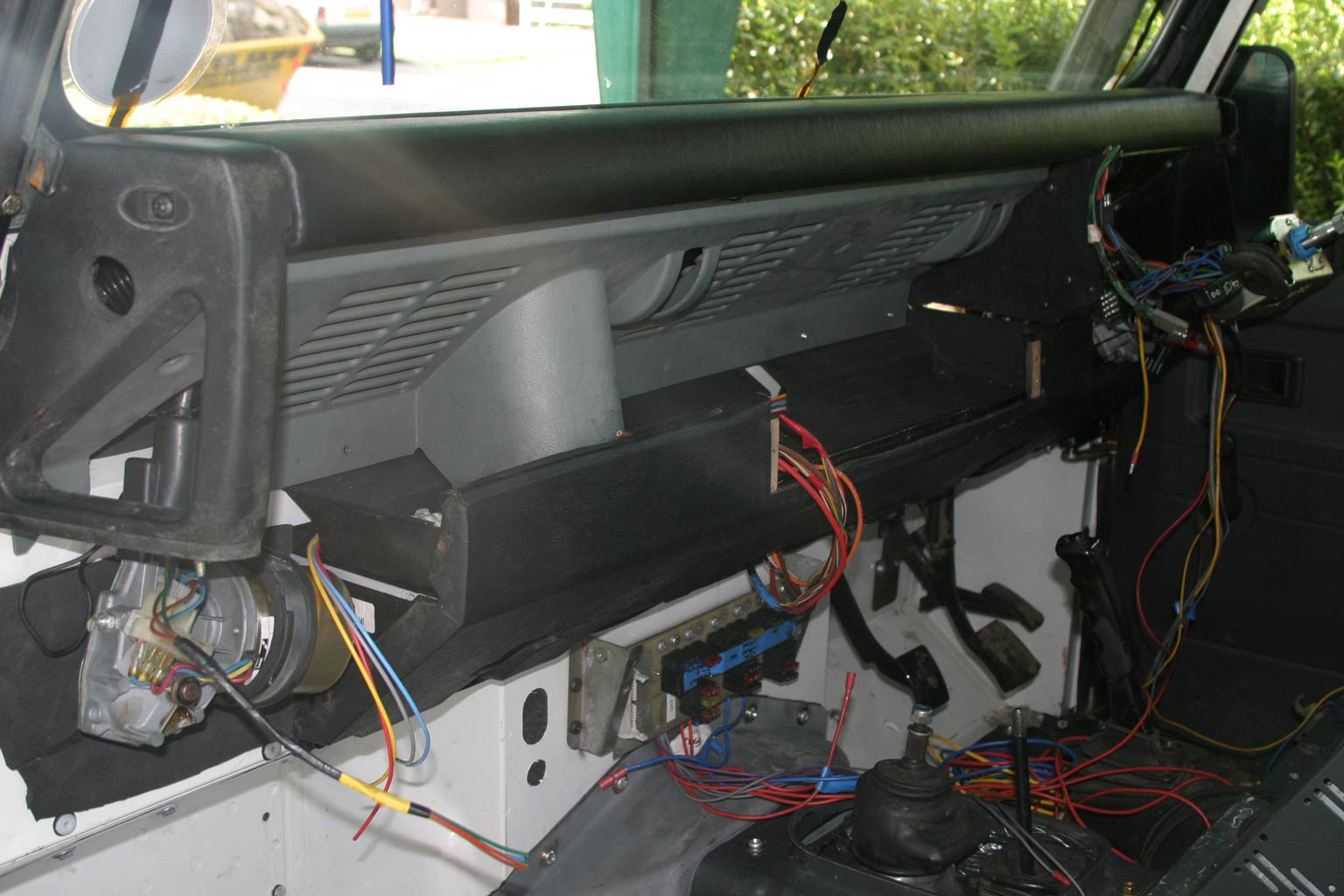

Day, wiring the TDI dash...Ehm read wire, green connector ehm.
Why do we do this to ourselves ? |
|
|
Just
before the new bulkhead came in. this was day one
